CLA700 +CLA LF3200
Composite Line Array
CLA700: 4x 8″ Low-Mid Driver + 2x 1.5″ ISOPHASIC HF Array
CLA LF3200: 1x 18″ Sub Bass Driver

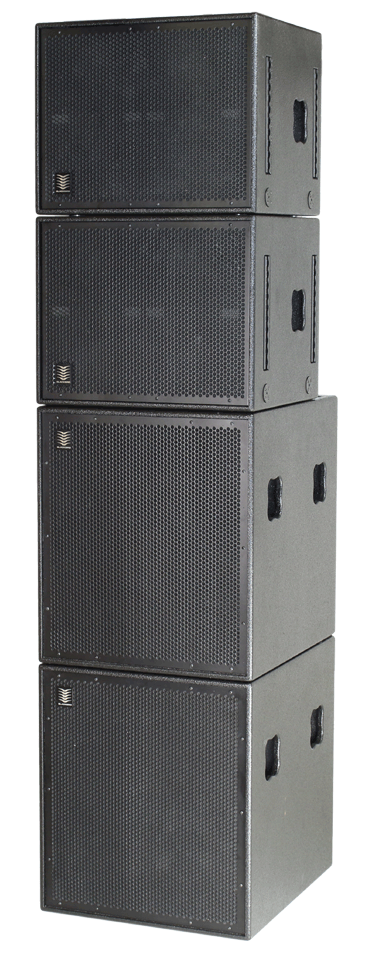

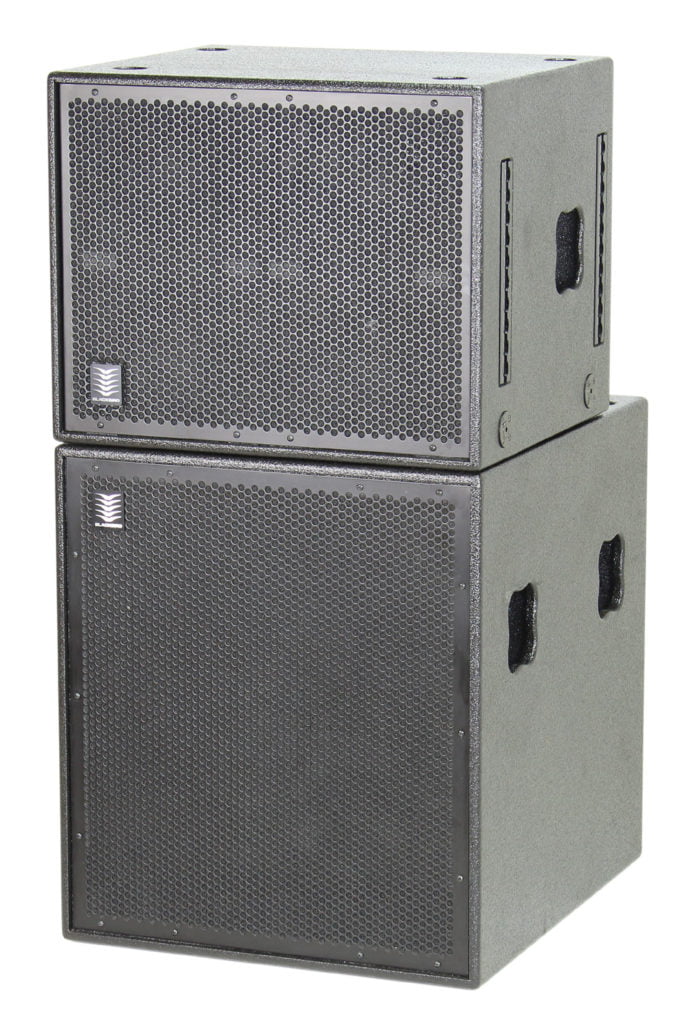

The CLA700 Composite Line Array and the CLA LF3200 Sub Bass Enclosure combine to create the BLACKBIRD CLA Sound Reinforcement System. The BLACKBIRD CLA System is the ideal solution for compact touring or in-house systems offering highly advanced line array technology in a compact and easy to use format. A system comprising 2x CLA700 + 2x CLA LF30200 per side can easily cater for audiences in excess of 1000 people.
The CLA700 is a 2 way composite line array cabinet utilising well established line array principals to achieve exceptional frequency response, pattern control and power handling. The Bass/Mid Section features 4x 8″, 700 Watt Program Neodymium Loudspeakers. The critical High Frequencies are reproduced by a dual element ISOPHASIC HF Aperture capable of handling 560 Watts Program. The CLA700’s dispersion pattern is 150° Horizontal by 20° Vertical providing maximum audience coverage with unparalleled intelligibility. When 2x CLA700’s are stacked the vertical dispersion is reduced to 10°. Frequency response is flat from 50Hz to 20kHz.

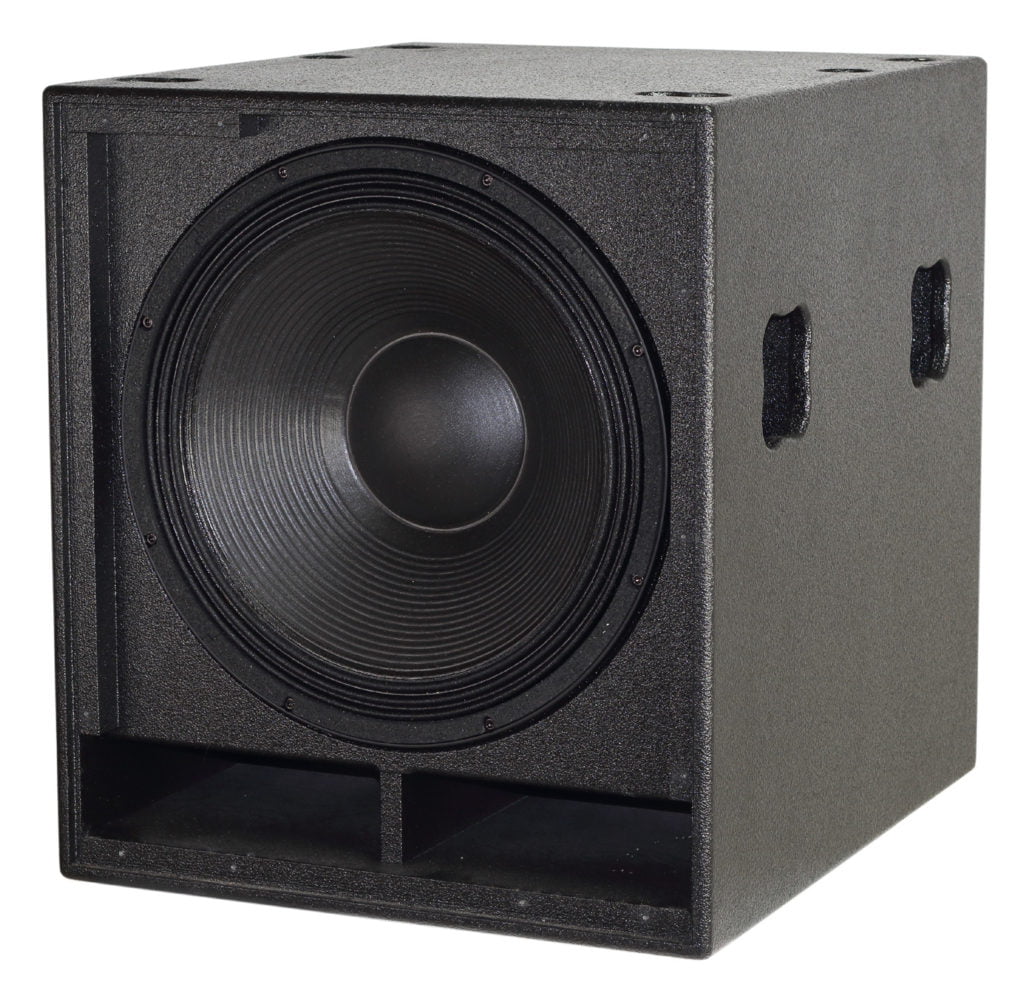

The single 18” transducer CLA LF3200 Sub Bass System is tailored to perfectly compliment the CLA700. Power handling is 3,200 Watts Program with a frequency response from 32Hz to 200Hz. BLACKBIRD CLA Systems can use 4x CLA LF3200 Sub Bass Cabinets per 2x CLA700 to provide additional low end reinforcement. Acoustic Technologies Factory Recommended Settings guarantee optimal system performance, power handling and reliability.
The cabinets are finished in black AcoustiCoate polymer with powder coated grilles.
Acoustic Technologies is offering turn-key BLACKBIRD CLA700 + CLA LF3200 Systems complete with PowerSoft XSeries Amplifiers complete with racks and cabling to suit.
The BLACKBIRD CLA is a modular system allowing various cabinet and amplifier configurations to suit a wide range of sound reinforcement applications.
Please contact Acoustic Technologies for the range of BLACKBIRD CLA System details and pricing.
CLA700 Specifications
| Transducer Complement | 4 x 8” Bass-Mid Transducer 2 x 1.5” H.F. Transducer on ISOPHASIC Aperture |
| Frequency Response | 50 Hz – 20 kHz ± 3 dB |
| Sensitivity | 102 dB @ 1 watt, 1 metre |
| Maximum Input | Continuous: 1480 Watts RMS Program: 2960 Watts Program Peak Program: 5920 Watts Peak |
| Maximum SPL | Continuous: 133 dB @ 1 metre Program: 136 dB @ 1 metre Peak Program: 139 dB @ 1 metre |
| Nominal Impedance | Bass / Mid: 8 Ohms H. F.: 4 Ohms |
| High Frequency Dispersion | 150° (Horizontal ) x 20° (Vertical) |
| Physical Size | Height 452mm, Width 560mm, Depth 484mm (excluding castors) – 614mm (including castors) |
| Net Weight | 37 Kgs (excluding castors), 40 Kgs (including castors) |
| Connectors | 2 x Neutrik NL4MP Speakon Connectors |
| Hardware | 2x Handgrips 4x Castors Cabinet Flying Hardware Cabinet Locating and Safety Attach Points for safe cabinet ground stacking |
| Cabinet Finish | AcoustiCoate Black Elastomer Finish |
| Grille Finish | Black Powder Coat Paint Finish |

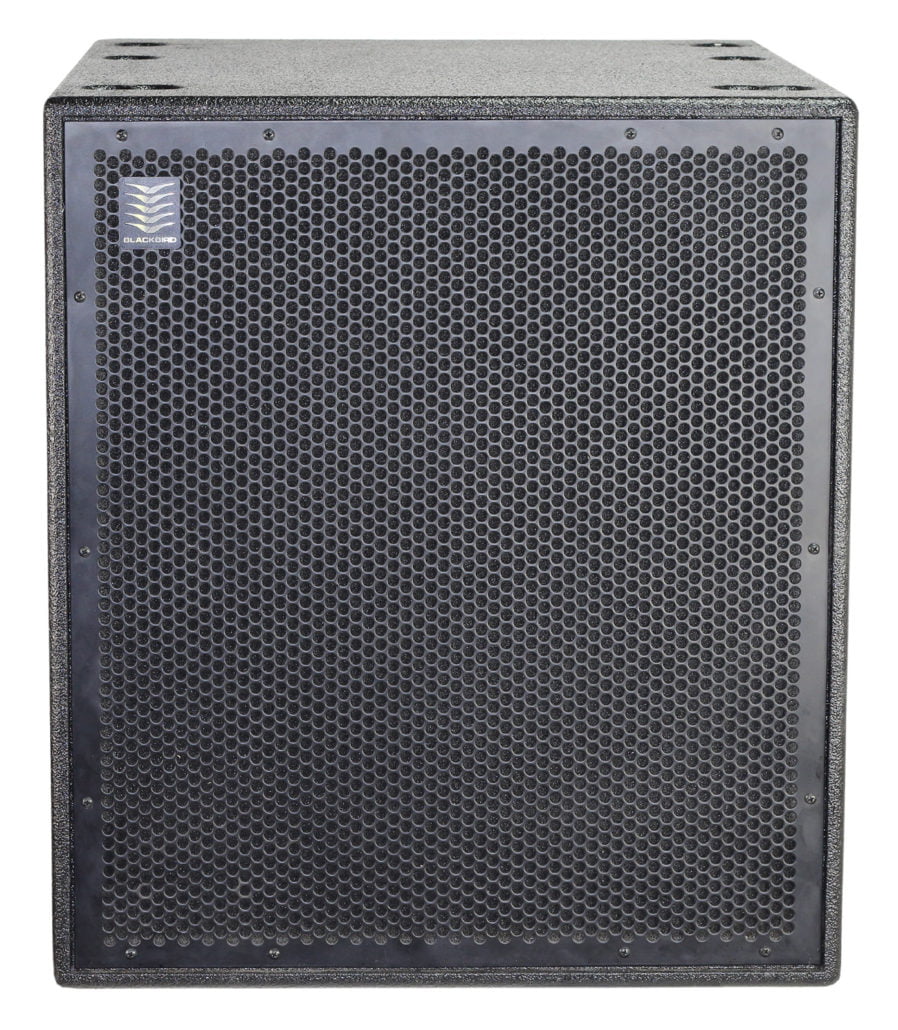

CLA LF3200 Specifications
| Transducer Complement | 1 x 18” Sub Bass Transducers |
| Frequency Response | 32 Hz – 200 Hz ± 3 dB |
| Sensitivity | 98 dB @ 1 watt, 1 metre |
| Maximum Input | Continuous: 1600 Watts RMS Program:3200 Watts Program Peak Program: 6400 Watts Peak |
| Maximum SPL | Continuous: 130 dB @ 1 metre Program: 133 dB @ 1 metre Peak Program: 136 dB @ 1 metre |
| Nominal Impedance | 1 x 4 Ohms |
| Physical Size | Height 626mm, Width 560mm, Depth 640mm (excluding castors) – 770mm (including castors) |
| Net Weight | 53 Kgs (excluding castors), 56 Kgs (including castors) |
| Connectors | 2 x Neutrik NL4MP Speakon Connectors |
| Hardware | 4x Handgrips 4x Castors Cabinet Locating and Safety Attach Points for safe cabinet ground stacking |
| Cabinet Finish | AcoustiCoate Black Elastomer Finish |
| Grille Finish | Black Powder Coat Paint Finish |
The CLA700 and CLA LF3200 enclosures are constructed of high quality Finnish Birch Ply. The transducers are protected by a rugged steel grille. Acoustically transparent PVC foam is bonded to the mesh, providing a durable, visually appealing finish.
Sensitivity, Power Handling and Frequency Response measurements are specified using the Factory Recommended Loudspeaker Management System Settings.
Sensitivity, Maximum Power and SPL measurements are conducted in accordance with the AES 24 Hour Pink Noise Standard. Acoustic Technologies reserve the right to alter or amend CLA700 and the CLA LF3200, without prior warning in the interests of product improvement.
