SS10
Loudspeaker Enclosure
1 x 6.5″ Bass Mid Driver +1″ Horn – 150 Watts Program

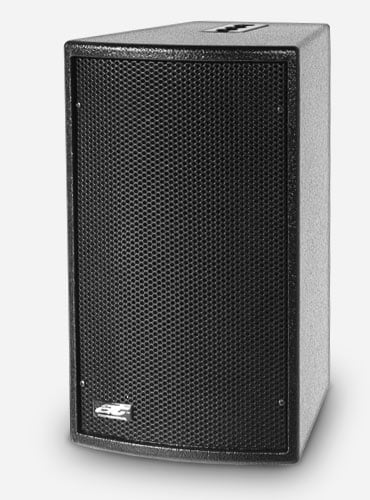

Acoustic Technologies SS10 is an ultra-compact trapezoidal shaped cabinet constructed of premium Finnish Birch plywood and finished in extremely durable AcoustiCoate black elastomer with a black powder coated grille.
The SS10 is purpose built for the corporate Audio-Visual production market. The cabinet provides industry standard fly track on the cabinet top. A heavy-duty steel speaker stand mount in located in the base of the cabinet. An M10 Flying Point is located on the cabinet’s side, allowing horizontal orientation.
The SS10 is loaded with our proprietary 6.5” Bass/Mid Transducer and is coupled via an advances design crossover network to a 1” H.F. Compression Driver and 90° x 60° Horn Flare. The Horn Flare can be rotated through 90° allowing the cabinet to be mounted for either vertical or horizontal applications and still maintain the required H.F. Dispersion characteristics.
The SS10 is fitted with 2 x Speakon® Connectors allowing easy link through to a second SS10
Acoustic Technologies SS10 is idealy suited for production in-fill, as a stand-alone compact full range cabinet or as a compact full-range system when combined with the SSB12 sub bass cabinet.
Specifications
| Transducer Complement | 1 x 6.5″ x Bass-Mid Transducer 1 x 1″ HF Compression Driver |
| Frequency Response | 75 Hz – 19 kHz ± 3 dB |
| Nominal Impedance | 8 Ohms |
| Sensitivity | 92 dB @ 1 watt, 1 metre |
| Maximum Input Continuous Maximum Input Program | 75 Watts RMS 150 Watts Program |
| Maximum SPL Continuous Maximum SPL Program | 111 dB @ 1 metre 114 dB @ 1 metre |
| High Frequency Dispersion | 90º Horizontal 60º Vertical H.F. Flare rotatable through 90º. |
| Dimensions | Height 343mm, Depth 250mm, Width Front 198mm, Rear 131mm |
| Nett Weight | 8 Kg |
| Connector Options | 2 x NL8MP Speakon® Connectors |
| Mounting Options | Fly Track Rigging System Speaker Stand Mount 1 x M10 Rigging Point for Horizontal Mounting |
| Cabinet Finish Options | AcoustiCoate Black Elastomer Finish |
| Grille Finish Options | Black Powder Coat Paint Finish |
The SS10 enclosure is constructed of high quality 12mm Finnish Birch Ply. A wide range of hardware, connector, grille and cabinet finishing options are available. The transducers are protected by a perforated steel mesh providing a durable visually appealing finish.
The SS10 passive crossover provides a seamless transition between the transducers. The crossover frequency is selected to enhance the already superb performance of the individual components. Great care is taken to ensure that a phase coherent output is maintained across the entire audio bandwidth.
Sensitivity, Maximum Power and SPL measurements are conducted in accordance with the AES 24 Hour Pink Noise Standard. Acoustic Technologies reserve the right to alter or amend the SS10, without prior warning in the interests of product improvement.
