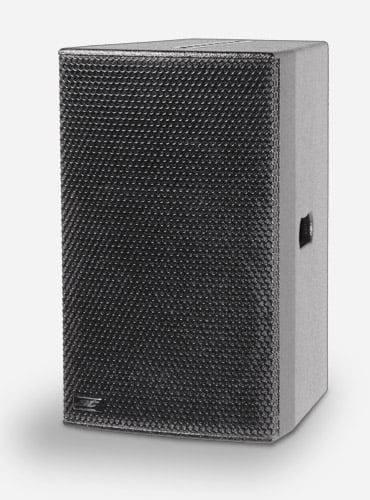

Loudspeaker Enclosure

1 x 12″ Bass Mid Driver +2″ Horn – 1060 Watts Program

Acoustic Technologies commitment to engineering superior loudspeaker products for the audio professional is evident in the new SS Series of loudspeaker systems. Designed for high end touring and production, the SS24 employs an extremely efficient 12” neodymium low frequency transducer and an advanced 2” exit neodymium H.F. compression driver coupled to a H.F. waveguide developed specifically for this cabinet.

The SS24 input switching allows either 2 way active or fully passive operation. The optimised internal crossover network provides a seamless transition between the system transducers. Crafted from the finest 18mm void free Finnish birch ply, the SS24 is built to withstand all the rigours of touring. The enclosure is finished in black AcoustiCoate with a powder coated steel grille, providing durable visually appealing finish. The SS24 features a versatile fly track rigging system and a pole mount adaptor

The end result is a truly professional loudspeaker system offering extremely high output with a smooth extended frequency response eminently suitable for all music and vocal reproduction.

Specifications

Transducer Complement 1 x 12″ Bass Transducer
1 x 2″ exit H.F. Compression Driver
Frequency Response 90 Hz – 18 kHz  3 dB
60 Hz – 22 kHz -10 dB
High Frequency Dispersion 70(H) x 40(v) or 100(H) x 40(v)
Physical Size Height 556mm (inc Feet), Depth 377 mm
Front Width 331 mm, Rear Width 232 mm
Net Shipping Weight 25 Kg
Connectors and
Mode Switch
2 x Speakon Connectors
Active / Passive Mode Changeover Switch
Hardware 2 x Handgrips
Fly Track Rigging System
Pole Mount Fitting
Cabinet Finish AcoustiCoate Black Elastomer Finish.
Grille Finish Black Powder Coat Paint Finish
lined with acoustically transparent foam.

Passive Mode Specifications:
Sensitivity 100 dB @ 1 watt, 1 metre
Max Input Continuous
Max Input Program
530 Watts RMS
1060 Watts Program
Max SPL Continuous
Max SPL Program
127 dB @ 1 metre
130 dB @ 1 metre
Nominal Impedance 8 Ohms
Active Mode Specifications:
Freq. Response – Bass

Freq. Response – H.F.

80 Hz – 4 kHz  3 dB
60 Hz – 5 kHz -10dB
800 Hz – 18 kHz  3 dB
Sensitivity – Bass
Sensitivity – H.F.
101 dB @ 1 watt, 1 metre
109 dB @ 1 watt, 1 metre
Max Input Continuous – Bass
Max Input Continuous – H.F.

Max Input Program – Bass
Max Input Program – H.F.

450 Watts RMS
80 Watts RMS

900 Watts
160 Watts

Max SPL Continuous – Bass
Max SPL Continuous – H.F.

Max SPL Program – Bass
Max SPL Program – H.F.

127 dB @ 1 metre
130 dB @ 1 metre

128 dB @ 1 metre
131 dB @ 1 metre

Active Crossover Frequency 1.2 kHz or higher at 24 dB / Octave
Contact Acoustic Technologies for Factory Recommended DSP Processor settings or click the download below.
Nominal Impedance – Bass
Nominal Impedance – Mid – High
8 Ohms
16 Ohms

The SS24 enclosure is constructed of high quality void free 18mm Finnish Birch Ply. The transducers are protected by a perforated steel mesh, lined with acoustically transparent foam, providing a durable visually appealing finish.

The SS24 passive crossover provides a seamless transition between the transducers. The crossover frequency is selected to enhance the already superb performance of the individual components. Great care is taken to ensure that a phase coherent output is maintained across the entire audio bandwidth.

Sensitivity, Maximum Power and SPL measurements are conducted in accordance with the AES 24 Hour Pink Noise Standard.
Acoustic Technologies reserve the right to alter or amend the SS24, without prior warning in the interests of product improvement.
