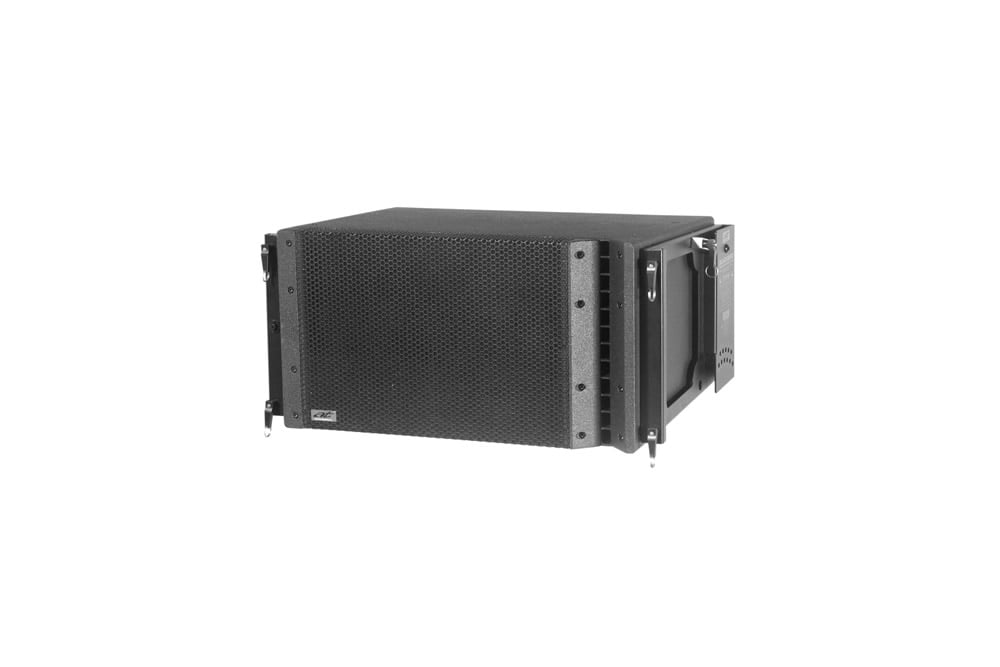

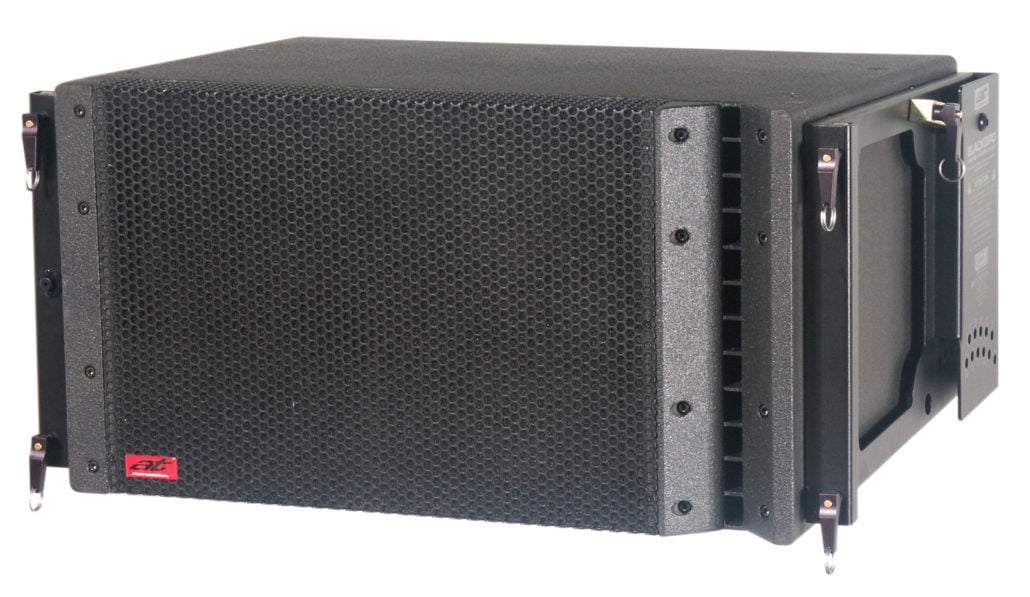

TLA312

Line Array Enclosure

1x 12″ Bass Driver + 2x 6″ Mid Driver + ISOPHASIC HF Device – 3860 Watts Program

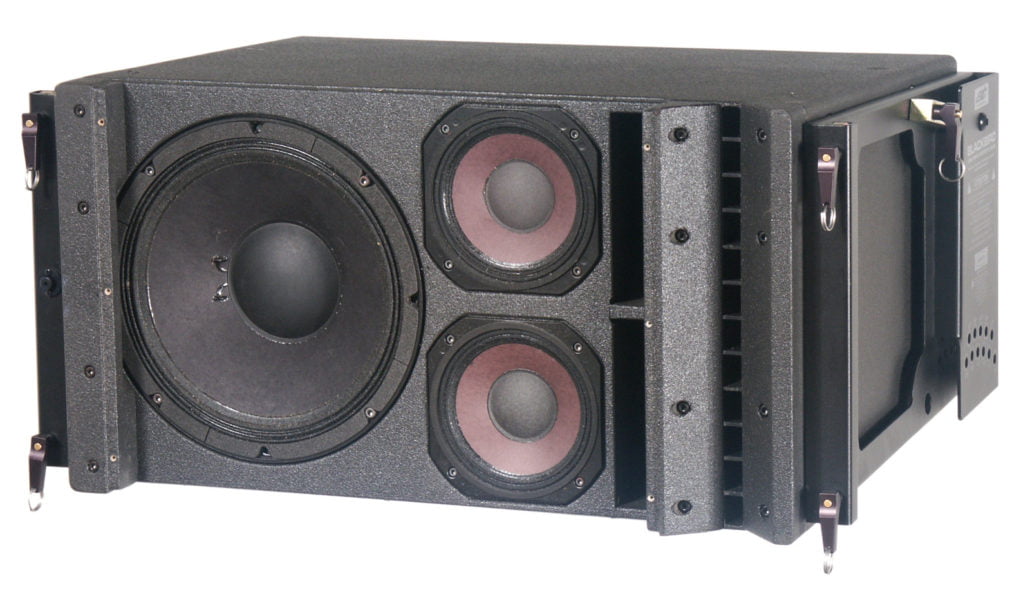

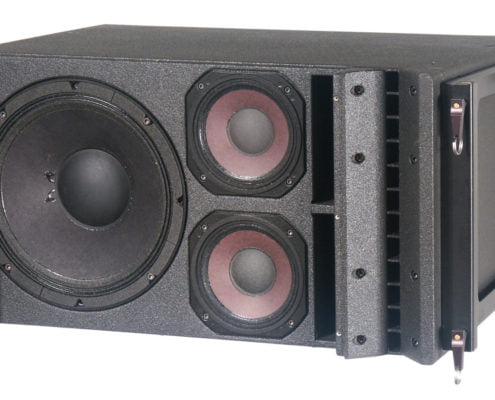

The TLA312 Blackbird Line Array Loudspeaker is a highly refined compact three way system. Low Frequencies are reproduced with an extended range 12” transducer. The Mid Frequency system utilises two high efficiency 6.5” devices. The all important High Frequencies are handled by an ISOPHASIC H.F. Aperture providing superb response and precise pattern control. Horizontal dispersion is user adjustable, offering 60º, 90º, 120º or 150º options, including asymmetric horizontal dispersion patterns. Vertical Dispersion is controlled by array size. All transducers feature neodymium motors providing high performance with reduced weight.

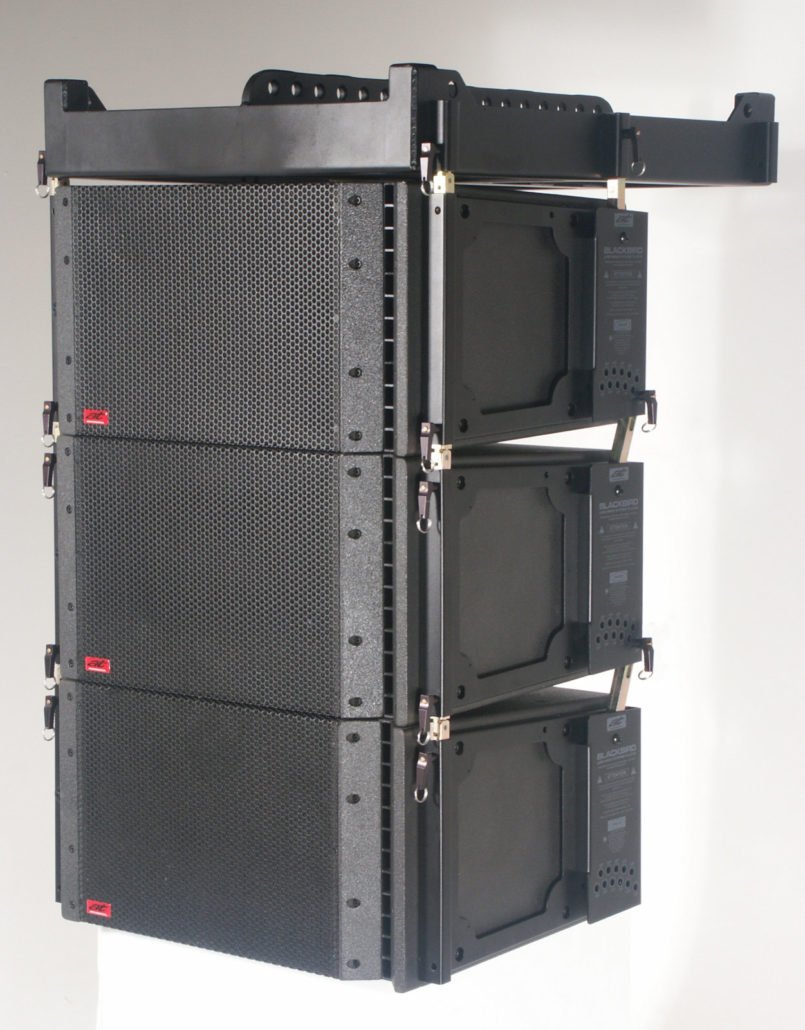

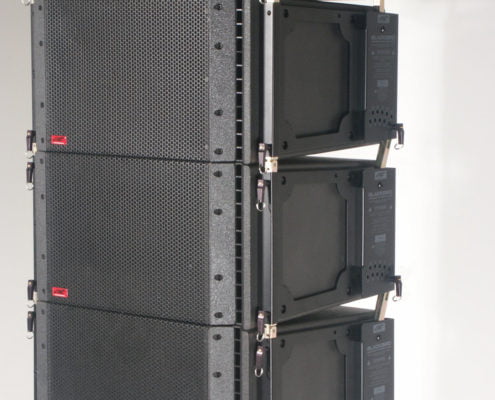

The proprietary Blackbird Flying Hardware system is an integral cabinet component and is supplied as standard. Inter cabinet angles are easily and accurately adjusted in 0.5º increments, from 0º to 5º, with the pivot point located at the cabinet front to maintain the integrity of the H.F. Aperture.

The flying system is designed so that all parts are captive to the cabinet frame with nothing that can become lost in transit.

The flying frame is suited to either flown or ground stack applications.

Acoustic Technologies Line Array Prediction Software enables highly accurate prediction of multi-cabinet array configurations and SPL coverage prior to flying the system.

The cabinets are finished in black AcoustiCoate polymer with powder coated grilles and are fitted with dual NL Speakon connectors with loop thru connections for Sub Bass provided.

The TLA312 Blackbird Line Array System is ideal for compact touring systems, outdoor music festivals and sporting events, corporate presentations and a wide range of in-house sound reinforcement applications including houses of worship, theatres and showrooms.

Specifications

Transducer Complement1 x 12″ Low Transducer
2 x 6.5″ Midrange Transducer
3 x 1″ HF Compression Driver
Frequency Response
(No system processing)
Low
Midrange
High
50 Hz – 3.5 kHz
250 Hz – 5.5 kHz
600 Hz – 15kHz
Sensitivity
(No system processing)
Low
Midrange
High
95 dB @ 1 watt, 1 metre
100 dB @ 1 watt, 1 metre
99 dB @ 1 watt, 1 metre
Maximum Input
Continuous
Low
Midrange
High
600 Watts RMS
240 Watts RMS
150 Watts RMS
Maximum Input
Program
Low
Midrange
High
1200 Watts Program
480 Watts Program
300 Watts Program
Maximum Input
Peak Program
Low
Midrange
High
2400 Watts Peak Program
960 Watts Peak Program
500 Watts Peak Program
Maximum SPL Peak Program
Flat Array (Calculated)
1 Cabinet
2 Cabinets
4 Cabinets
130 dB @ 1 metre
136 dB @ 1 metre
142 dB @ 1 metre
Nominal ImpedanceLow
Midrange
High
8 Ohms
16 Ohms
16 Ohms
High Frequency DispersionUser installed HF wave guides to provide
60°, 90°, or 150° Horizontal Dispersion.
Single cabinet vertical dispersion <10° Arrayed system vertical dispersion determined by array size.
Curved Array Cabinet AngleMaximum 5° between adjacent cabinets. (2.5° per cabinet)
Recommended Crossover Frequencies and Filter Slopes.See PDF downloads above
Physical Size692mm(W) x 375mm(H) x 530mm(D) – Excluding Flying Hardware
774mm(W) x 375mm(H) x 530mm(D) – Including Flying Hardware
Net Weight38 Kg – Excluding Flying Hardware
47 Kg – Including Flying Hardware
Connectors2 x Speakon NL8MP Connectors.
Cabinet FinishAcoustiCoate Black Elastomer Finish.
Grille FinishBlack Powder Coat Paint Finish.
Flying HardwareBLACKBIRD TLA312 Flying Hardware System, load rated for a 16 cabinet array per vertical drop, supplied as standard.
An optional integrated aiming Laser can be supplied fitted to each cabinet frame.
Top Flying FrameDimensions
Weight
Application
Load Rating
Safety Factor
770mm(W) x 145mm(H) x 915mm(D)
37Kgs
Can be used for flown or ground stack applications
16 cabinet array per vertical drop
Greater than 10. (Confirmed by destructive test)

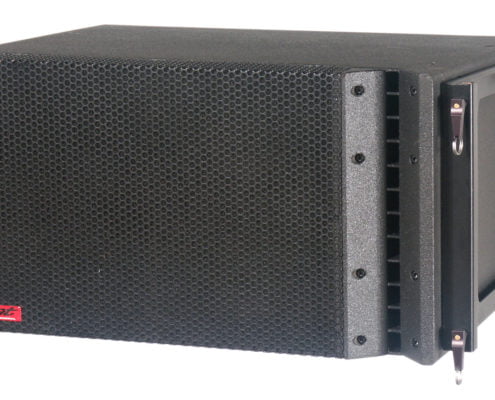

The TLA312 Blackbird Line Array is constructed of high quality void free Finnish Birch ply. The transducers are protected by a rugged perforated steel grille. Acoustically transparent PVC foam is bonded to the mesh, providing a durable, visually appealing finish.

Sensitivity, Maximum Power and SPL measurements are conducted in accordance with the AES 24 Hour Pink Noise Standard. Acoustic Technologies reserve the right to alter or amend the TLA312, without prior warning in the interests of product improvement.
